Architecture

The FPGC is built from three main hardware modules (CPU, GPU, Memory Unit) sharing a common memory bus, plus a software stack that runs on top. This page gives the big-picture view of how everything connects. Each component has its own detailed page elsewhere in the docs.

Note

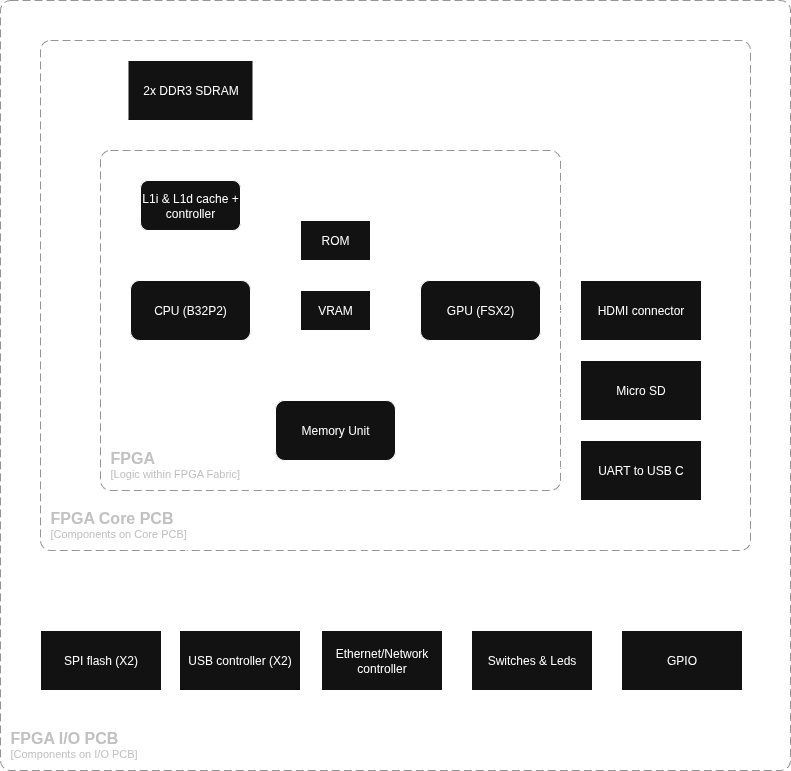

The picture needs to be updated as it was very outdated

Hardware

CPU (B32P3)

The B32P3 is a 32-bit RISC processor with a 5-stage pipeline running at 100 MHz. It has 16 registers, a 256-entry hardware stack, and a word-addressable address space. Instructions are fixed-width 32-bit, with 16 opcodes covering arithmetic, memory access, control flow, and system operations.

The CPU fetches instructions from either ROM (first 1 KiW) or SDRAM (through the L1I cache). Data reads and writes go through the L1D cache for SDRAM, or directly to VRAM, ROM, and I/O peripherals. Both caches are direct-mapped with 128 lines of 8 words each, managed by a write-back cache controller.

See CPU for the full ISA and pipeline details.

GPU (FSX)

The Frame Synthesizer generates 640×480 HDMI video at 60 Hz from two rendering layers:

• BGW plane: a tile renderer with background scrolling and a window overlay, similar to the NES PPU. Uses 8×8 tiles at 2× scale, giving 40×25 visible characters.
• Pixel plane: a 320×240 bitmap framebuffer at 8-bit color (R3G3B2), stored in external SRAM.

The GPU runs off its own 25 MHz pixel clock and reads VRAM independently from the CPU. A frame-drawn interrupt lets software synchronize to vblank.

See GPU for rendering details and memory layout.

Memory Unit (MU)

The Memory Unit handles all slow I/O peripherals: UART, six SPI masters, three timers, GPIO, and several configuration registers. It sits between the CPU pipeline and the peripheral controllers, presenting a simple start/done stalling interface.

High-speed paths (SDRAM, ROM, VRAM) bypass the MU entirely and connect directly to the pipeline's MEM stage.

See Memory Unit for peripheral details, and Memory Map for the full address layout.

Memory

Component	Size	Purpose
SDRAM	64 MiB (2× W9825G6KH-6)	Main memory for code and data
ROM	1 KiW (4 KiB)	Bootloader
VRAM	~100 KiB (FPGA block RAM)	Tile maps, palettes, pattern tables
SRAM	512 KB (IS61LV5128AL)	Pixel framebuffer
SPI Flash	2× 16 MiB (W25Q128)	Persistent storage (FPGA config + filesystem)
SD Card	External	Mass storage via SPI

Software

Bootloader

On power-up, the CPU starts executing from ROM. The ROM bootloader displays a logo, checks the boot DIP switch, and either copies code from SPI Flash into SDRAM or hands off to a UART bootloader for development. See Bootloaders.

OS (BDOS)

BDOS is the operating system, loaded from SPI Flash. It provides a shell, filesystem access (BRFS), hardware drivers, and syscalls for user programs. User programs are loaded into dedicated memory slots and run position-independent code. See OS.

Toolchain

• ASMPY: Python-based assembler for the B32P3 ISA. See Assembler.
• B32CC: C compiler derived from SmallerC, targeting B32P3 assembly. See C Compiler.
• BRFS: Custom FAT-based filesystem cached in RAM with SPI Flash backing. See BRFS.
• FNP: Custom Layer 2 Ethernet protocol for file transfers and remote keyboard input. See FNP.

Data Flow

A typical instruction execution goes through these paths:

1. Fetch: PC → L1I cache → (on miss) cache controller → SDRAM → fill L1I → deliver instruction
2. Execute: ALU operates on register values
3. Memory access: Depending on the address:
   • SDRAM range → L1D cache → (on miss) cache controller → SDRAM
   • VRAM range → direct dual-port RAM access (single cycle)
   • I/O range → Memory Unit → peripheral controller → stall until done
4. Write back: Result written to register file

The GPU operates independently on its own clock domain, reading VRAM and SRAM concurrently with CPU execution. The only synchronization point is the vblank interrupt.
